6RN90S06E30U24BMar@2081

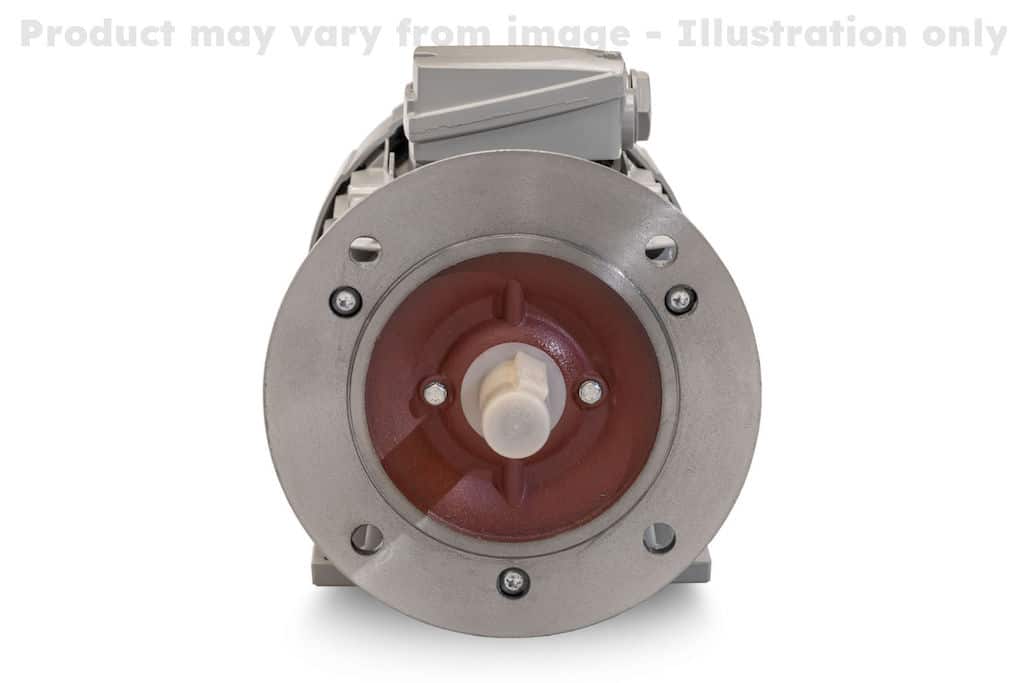

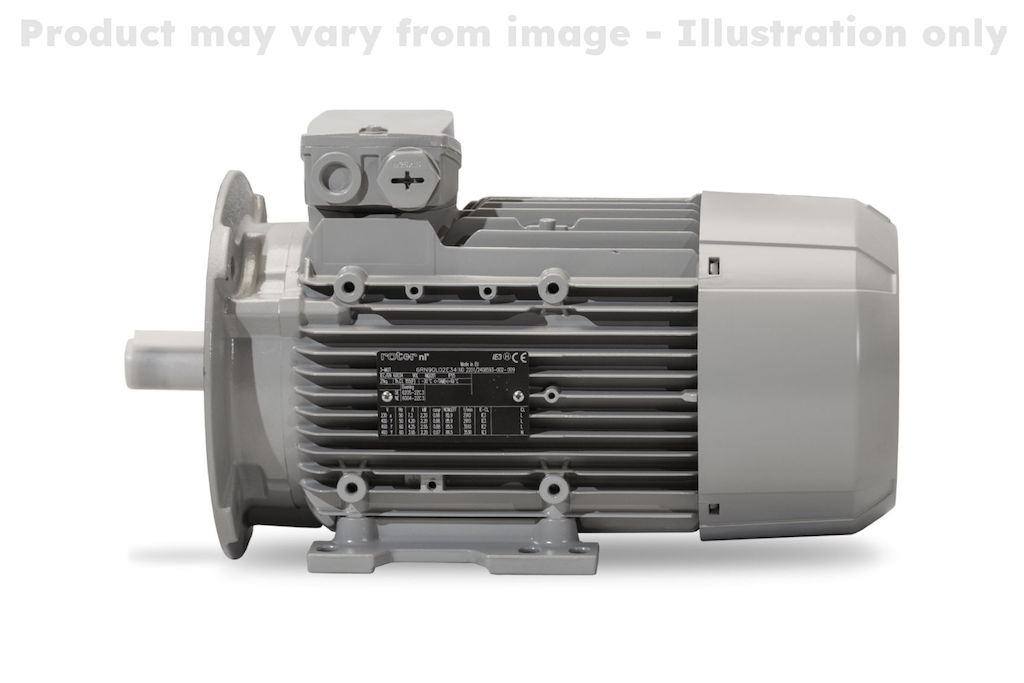

0,75kW motor IEC IE3 3~, 6p, D254/Y440V 60Hz, 90S B3/B5 IC411
Neem a.u.b. contact met ons op.
Informatie
| Gewicht | 18,0 kg |
|---|---|
| Model | 6RN |
| Mounting | B3/B5 |
| Frame IEC | 90 |
| Output (kW) | 0.75 |
| Voltage 50Hz | D230/Y400V 50Hz |
| Voltage 60Hz | D254/Y440V 60Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 6 |
| # of phases | 3 |
| Eff.class IEC | IE3 |
| Eff% IEC | 82.5 |
| Inom (A) | 2.91 |
| Power factor | 0.71 |
| Speed (rpm) | 1148 |
| Bearing DE | 6205-2Z/C3WT (-40°C/+160°C) |
| Bearing NDE | 6004-2Z/C3WT (-40°C/+160°C) |
Opmerking: de elektrische waarden in bovenstaande tabel zijn bij 50 Hz.
Documentatie en andere belangrijke items
0,75 kW Standaard laagspanningsmotor IEC IE3 1148 tpm, 3 fase, 6 pool, D254/Y440V 60Hz, 90S frame B3/B5, IC411
