6RD100LA2E3U24@1001
3kW motor IEC IE3 3~, 2p, D230/Y400V 50Hz, 100L B3 IC411
Please contact us.
Information
| Weight | 51 kg |
|---|---|
| Model | 6RD |
| Mounting | B3 |
| Frame IEC | 100 |
| Output (kW) | 3 |
| Voltage 50Hz | D230/Y400V 50Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 2 |
| # of phases | 3 |
| Eff.class IEC | IE3 |
| Eff% IEC | 87.1 |
| Inom (A) | 9.9 |
| Power factor | 0.87 |
| Speed (rpm) | 2890 |
| Bearing DE | 6206-2Z/C3WT (-40°C/+160°C) |
| Bearing NDE | 6206-2Z/C3WT (-40°C/+160°C) |
Note: electrical values in table above are at 50Hz
Description of motor

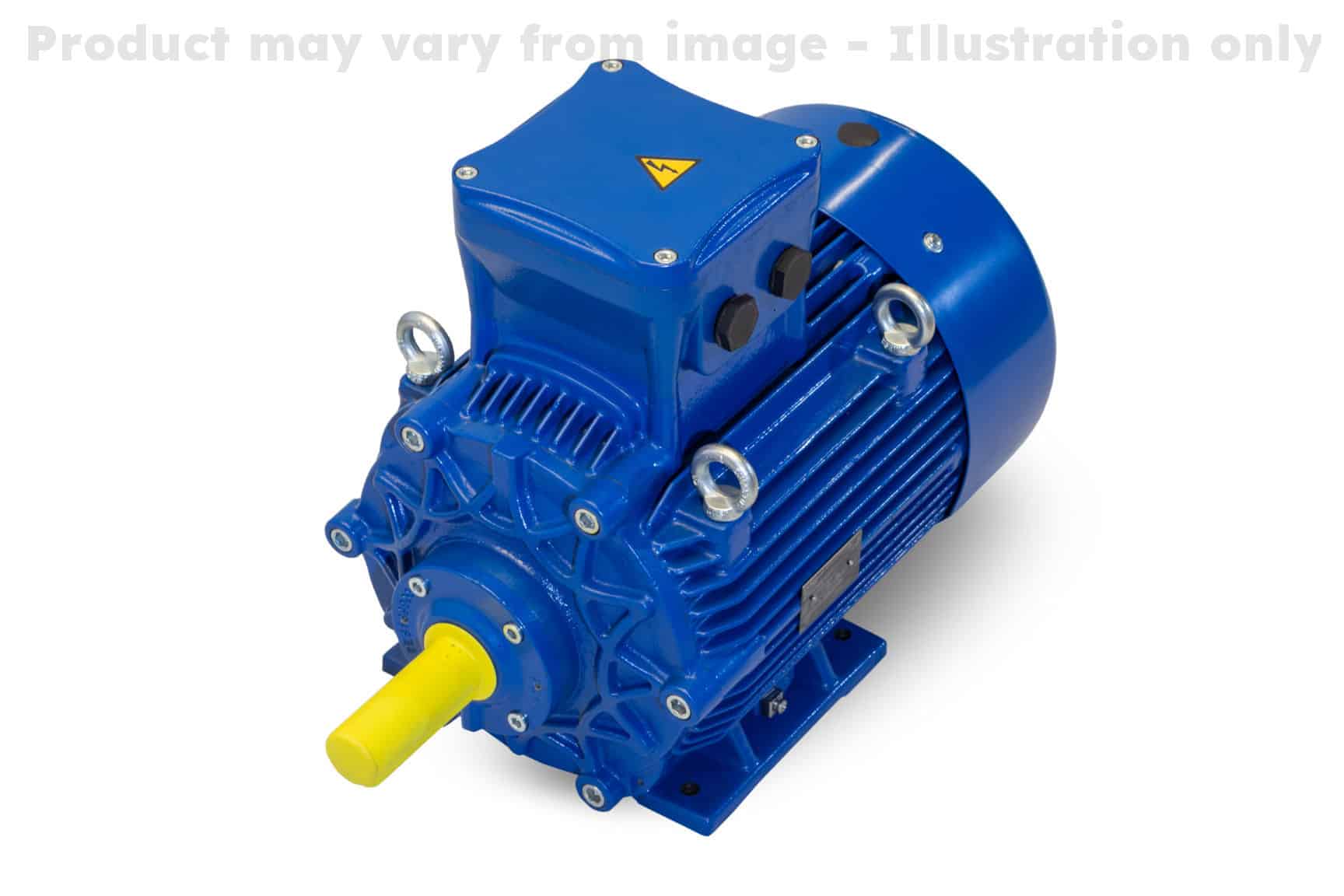

3 kW General Purpose Low Voltage IEC Motor IE3 2890 rpm, 3 phase, 2 pole, D230/Y400V 50Hz, 100L Frame B3, IC411
