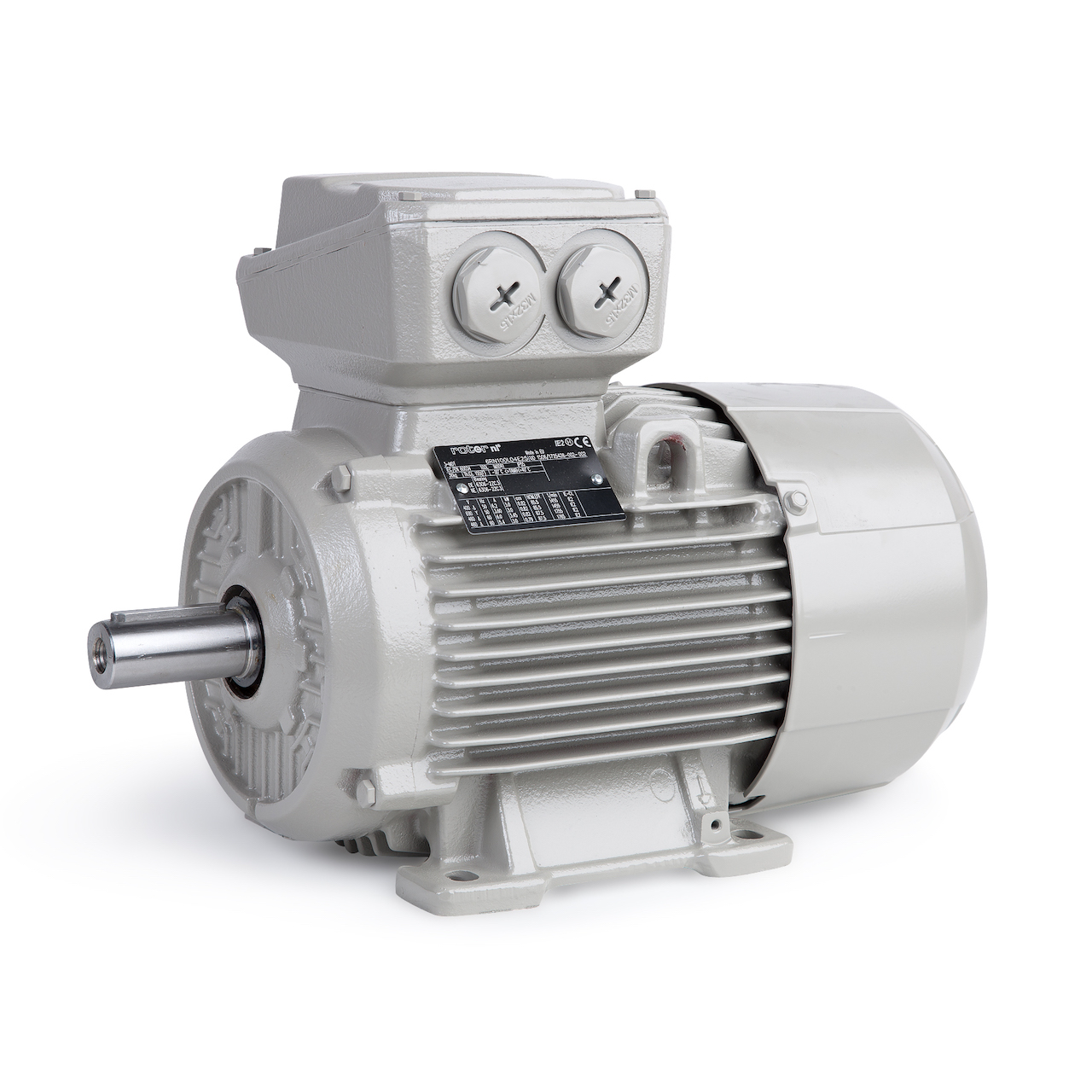

6RN160L08E24U24@1081
7.5kW motor IEC IE2 3~, 8p, D230/Y400V 50Hz, 160L B3 IC411
Please contact us.
Information
| Weight | 123 kg |
|---|---|
| Model | 6RN |
| Mounting | B3 |
| Frame IEC | 160 |
| Output (kW) | 7.5 |
| Voltage 50Hz | D230/Y400V 50Hz |
| Voltage 60Hz | D265/Y460V 60Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 8 |
| # of phases | 3 |
| Eff.class IEC | IE2 |
| Eff% IEC | 86.0 |
| Inom (A) | 30.5 |
| Power factor | 0.71 |
| Speed (rpm) | 729 |
| Bearing DE | 6309-2Z/C3WT (-40°C/+160°C) |
| Bearing NDE | 6309-2Z/C3WT (-40°C/+160°C) |
Note: electrical values in table above are at 50Hz
Description of motor
7.5 kW General Purpose Low Voltage IEC Motor IE2 729 rpm, 3 phase, 8 pole, D230/Y400V 50Hz, 160L Frame B3, IC411
