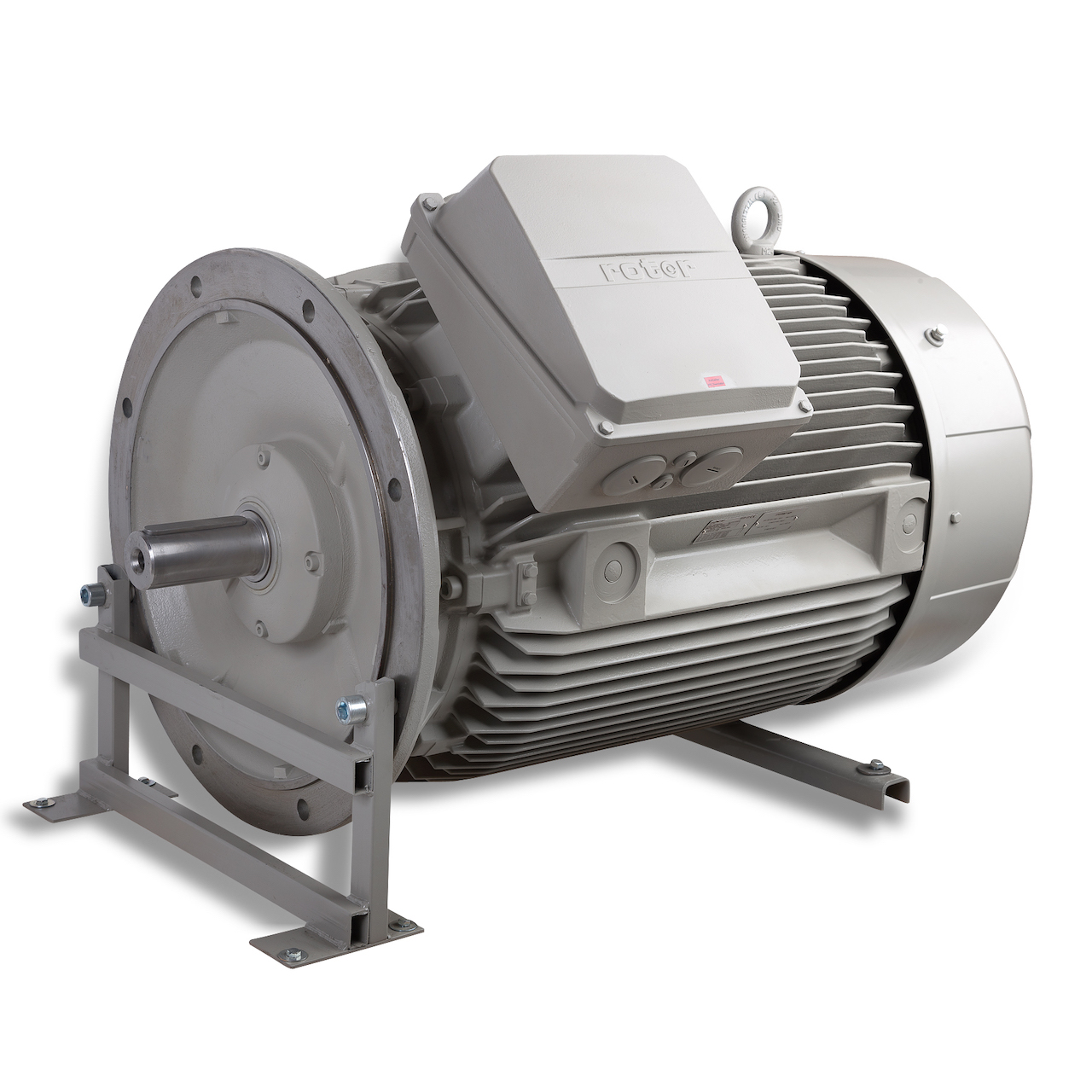

6RN200L08E25U46@3021
15kW motor IEC IE2 3~, 8p, D400/Y690V 50Hz, 200L B5 IC411
Please contact us.
Information
| Weight | 220 kg |
|---|---|
| Model | 6RN |
| Mounting | B5 |
| Frame IEC | 200 |
| Output (kW) | 15 |
| Voltage 50Hz | D400/Y690V 50Hz |
| Voltage 60Hz | D460V 60Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 8 |
| # of phases | 3 |
| Eff.class IEC | IE2 |
| Eff% IEC | 88.0 |
| Inom (A) | 32.5 |
| Power factor | 0.79 |
| Speed (rpm) | 718 |
| Bearing DE | 6312-2Z/C3WT (-40°C/+160°C) |
| Bearing NDE | 6312-2Z/C3WT (-40°C/+160°C) |
Note: electrical values in table above are at 50Hz
Description of motor
15 kW General Purpose Low Voltage IEC Motor IE2 718 rpm, 3 phase, 8 pole, D400/Y690V 50Hz, 200L Frame B5, IC411
