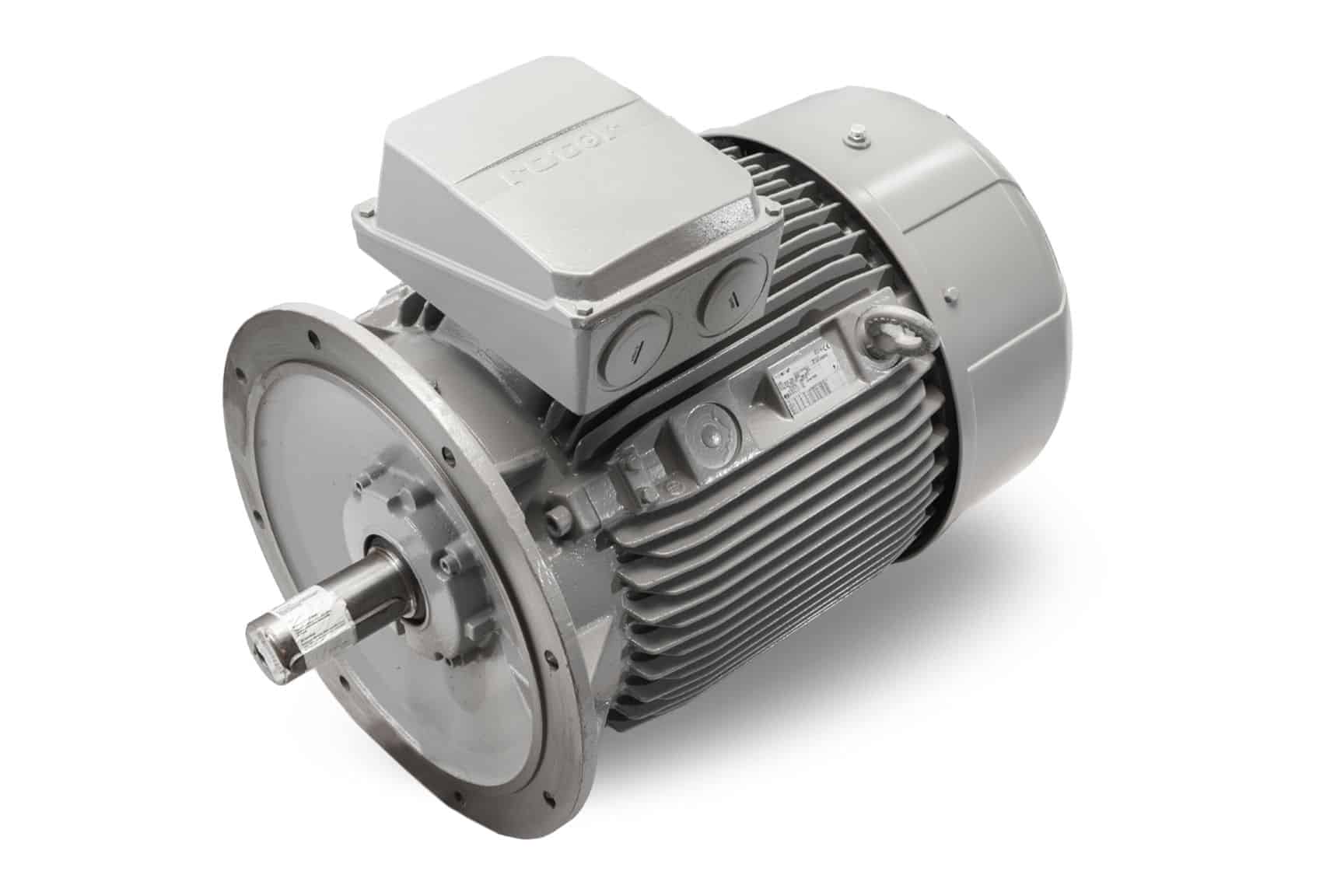

6RN225M08E32U46@3021
22kW motor IEC IE3 3~, 8p, D400/Y690V 50Hz, 225M B5 IC411
Availability: 1 in stock
Information
| Weight | 315 kg |
|---|---|
| Model | 6RN |
| Mounting | B5 |
| Frame IEC | 225 |
| Output (kW) | 22 |
| Voltage 50Hz | D400/Y690V 50Hz |
| Voltage 60Hz | D460V 60Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 8 |
| # of phases | 3 |
| Eff.class IEC | IE3 |
| Eff% IEC | 90.6 |
| Inom (A) | 45.5 |
| Power factor | 0.77 |
| Speed (rpm) | 732 |
| Bearing DE | 6313/C3 |
| Bearing NDE | 6313/C3 |
Note: electrical values in table above are at 50Hz
Description of motor
22 kW General Purpose Low Voltage IEC Motor IE3 732 rpm, 3 phase, 8 pole, D400/Y690V 50Hz, 225M Frame B5, IC411
