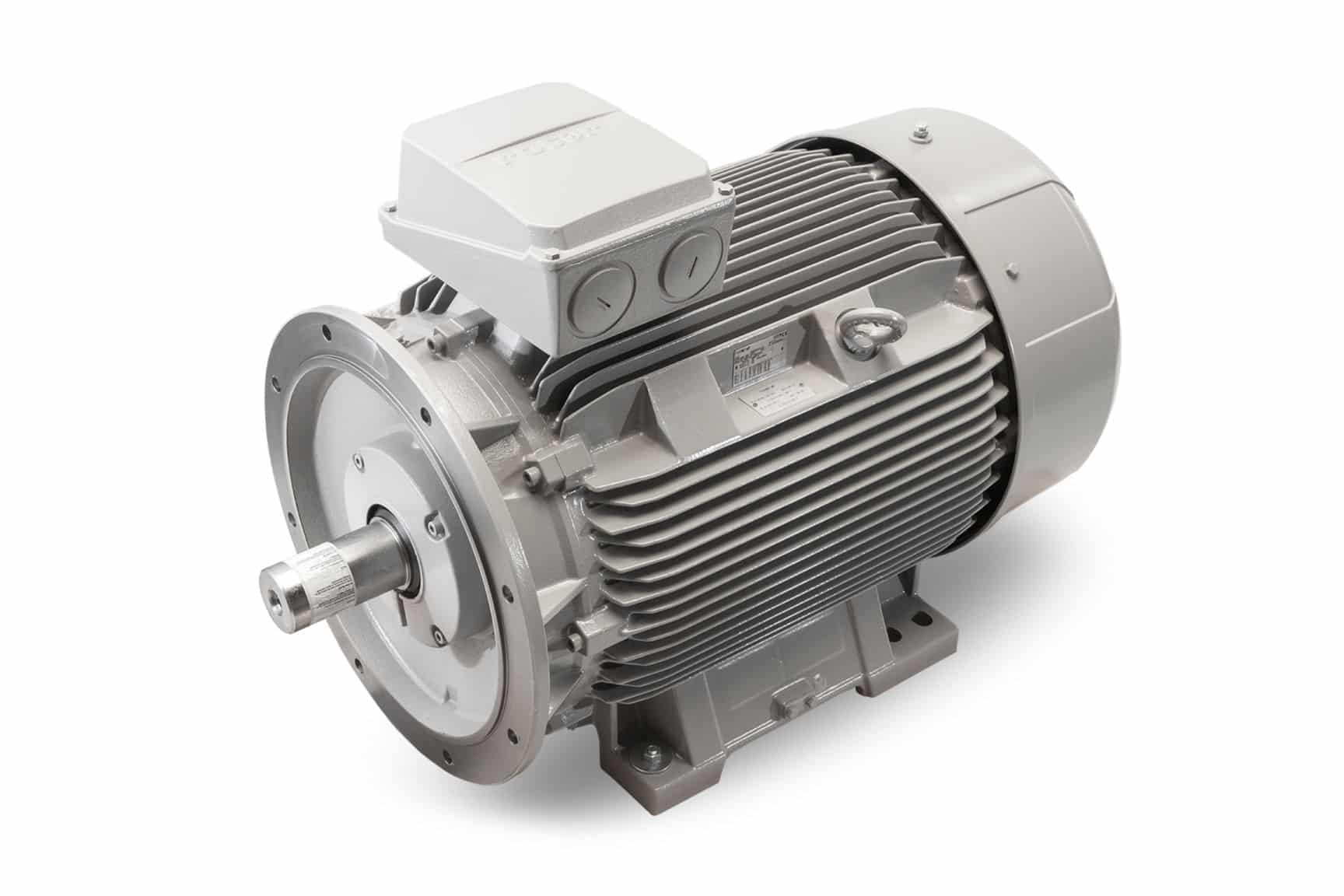

6RN225M08E32U46BMar@2021
22kW motor IEC IE3 3~, 8p, D440V 60Hz, 225M B3/B5 IC411
Please contact us.
Information
| Weight | 280 kg |
|---|---|
| Model | 6RN |
| Mounting | B3/B5 |
| Frame IEC | 225 |
| Output (kW) | 22 |
| Voltage 50Hz | D400/Y690V 50Hz |
| Voltage 60Hz | D440V 60Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 8 |
| # of phases | 3 |
| Eff.class IEC | IE3 |
| Eff% IEC | 91.7 |
| Inom (A) | 40.3 |
| Power factor | 0.78 |
| Speed (rpm) | 885 |
| Bearing DE | 6313/C3 |
| Bearing NDE | 6313/C3 |
Note: electrical values in table above are at 50Hz
Description of motor
22 kW General Purpose Low Voltage IEC Motor IE3 885 rpm, 3 phase, 8 pole, D440V 60Hz, 225M Frame B3/B5, IC411
