6RN315L04E45U46B@2021

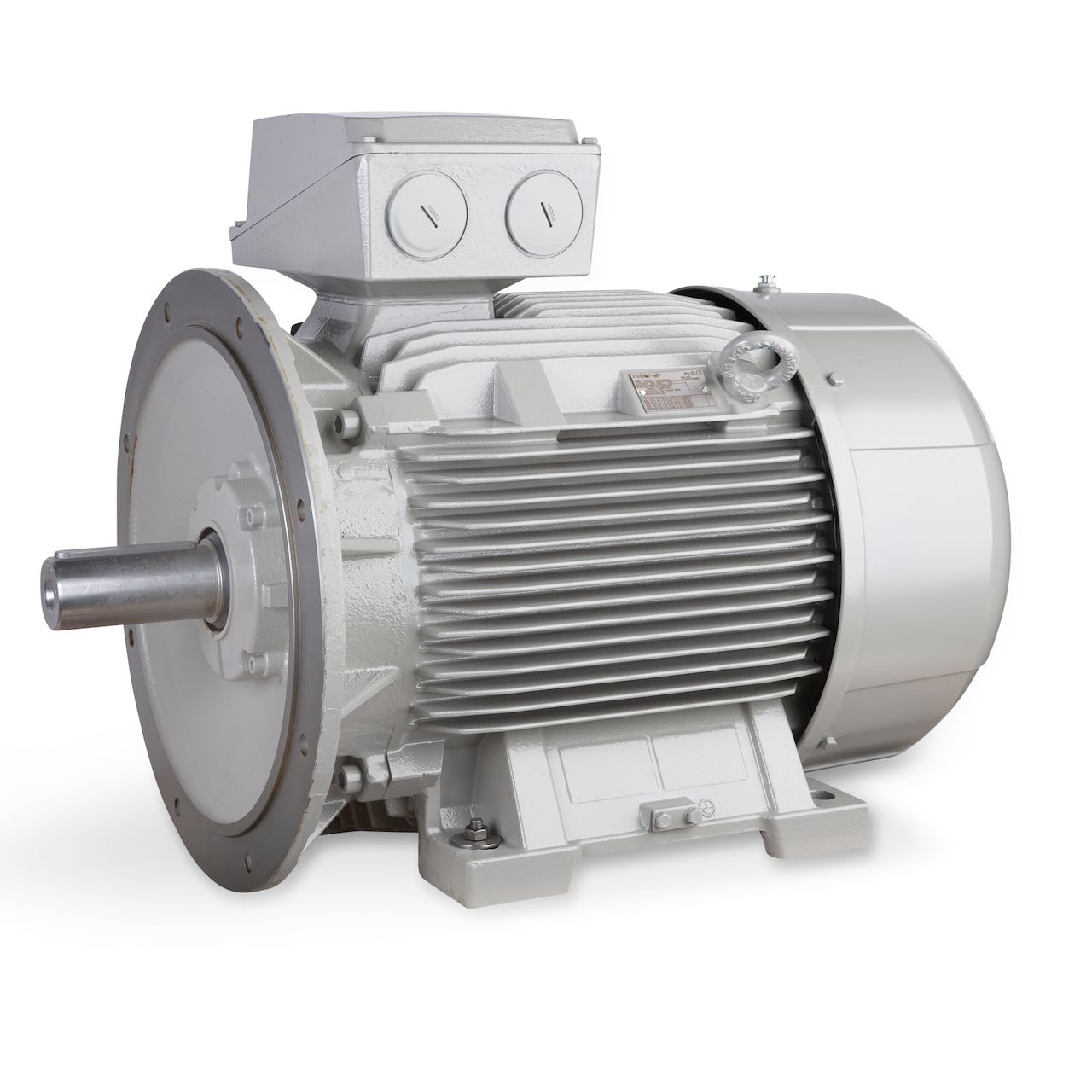

200kW motor IEC IE4 3~, 4p, D400/Y690V 50Hz, 315L B3/B5 IC411
Please contact us.
Information
| Weight | 1312 kg |
|---|---|
| Model | 6RN |
| Mounting | B3/B5 |
| Frame IEC | 315 |
| Output (kW) | 200 |
| Voltage 50Hz | D400/Y690V 50Hz |
| Voltage 60Hz | D460V 60Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 4 |
| # of phases | 3 |
| Eff.class IEC | IE4 |
| Eff% IEC | 96.7 |
| Inom (A) | 345 |
| Power factor | 0.86 |
| Speed (rpm) | 1491 |
| Bearing DE | 6319/C3 |
| Bearing NDE | 6319/C3 |
Note: electrical values in table above are at 50Hz
Description of motor
200 kW General Purpose Low Voltage IEC Motor IE4 1491 rpm, 3 phase, 4 pole, D400/Y690V 50Hz, 315L Frame B3/B5, IC411
