6RN315M08E22U46B@2021

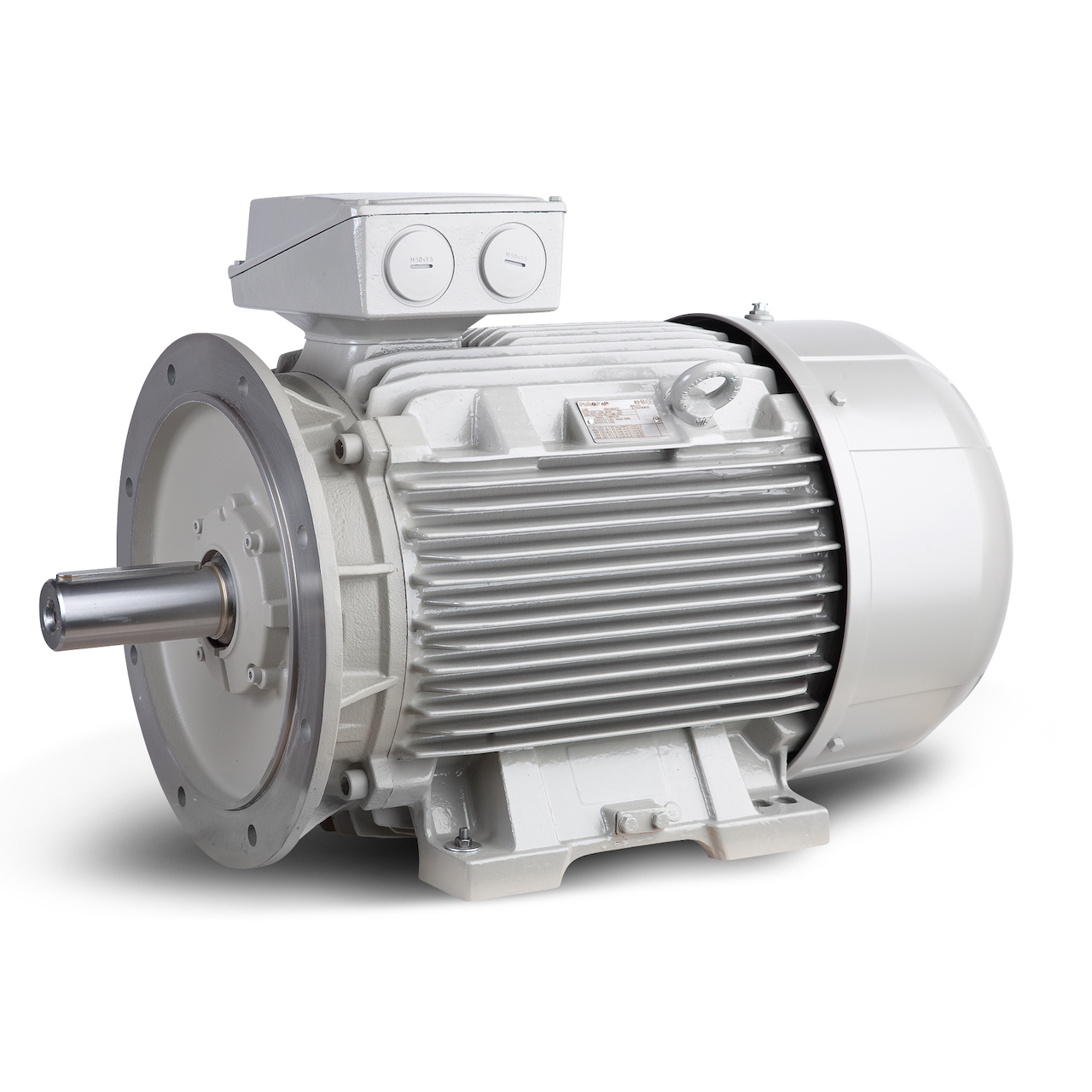

75kW motor IEC IE2 3~, 8p, D400/Y690V 50Hz, 315M B3/B5 IC411
Please contact us.
Information
| Weight | 1090 kg |
|---|---|
| Model | 6RN |
| Mounting | B3/B5 |
| Frame IEC | 315 |
| Output (kW) | 75 |
| Voltage 50Hz | D400/Y690V 50Hz |
| Voltage 60Hz | D460V 60Hz |
| Protection class | IP55 |
| Cooling | IC411 |
| Duty | S1 |
| Insulation class | F |
| # of poles | 8 |
| # of phases | 3 |
| Eff.class IEC | IE2 |
| Eff% IEC | 92.3 |
| Inom (A) | 143 |
| Power factor | 0.81 |
| Speed (rpm) | 738 |
| Bearing DE | 6319/C3 |
| Bearing NDE | 6319/C3 |
Note: electrical values in table above are at 50Hz
Description of motor
75 kW General Purpose Low Voltage IEC Motor IE2 738 rpm, 3 phase, 8 pole, D400/Y690V 50Hz, 315M Frame B3/B5, IC411
